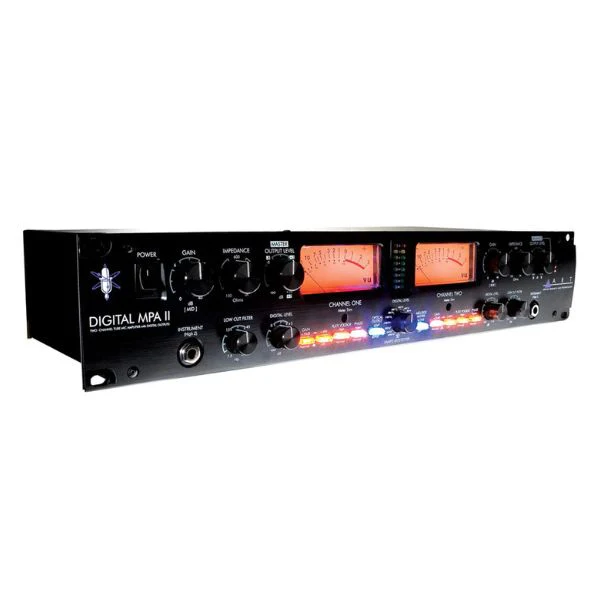

ART Pro Audio Digital MPA II
The ART Digital MPA-II delivers all of the same great features of the ProMPA with the added versatility of digital output. Like the ProMPA-II, each input circuit has 48v phantom power and features variable input impedance which can radically vary the overall performance of any high quality dynamic or ribbon microphone. The Digital MPA-II can be configured for dual mono or stereo operation with selectable mid/side mic support, summing the adjacent channel, to decode left/right signals.
Key features:
- Variable input impedance for flexible microphone voicing (150 Ohms To 2400 Ohms)
- Selectable plate voltage
- Large VU meters
- Backlit function switches
- Discrete Class-A input microphone preamplifier
- Low noise at lower gain settings
- Low total harmonic distortion
- Wide frequency response
- Front-mounted instrument input jack
- Supports mid/side miking technique
- Operates at +4dbm/-10dbv output
- Selectable stereo/dual-mono operation of output controls
- Automatic instrument input selection
- 24-204KHz External sample rate
- 44.1K, 48K, 88.2K, 96K, 176.4K, 192K Internal sample rates
- 24/16 bit switchable dithering
- Wide dynamic range A/D
- Rotary encoder for quick selection of sample rate
- Separate analog & digital output level controls
- Digital Level LED meters display both Average & Peak level
- ADAT optical I/O
- Sync to incoming ADAT data rate
- Switch selectable optical output (S/PDIF or ADAT)
- AES/EBU & S/PDIF outputs
- Two word clock jacks allowing loop through
Product Information
Product Information
Shipping & Returns
Shipping & Returns
ART Pro Audio Digital MPA II
ART Pro Audio Digital MPA II
The ART Digital MPA-II delivers all of the same great features of the ProMPA with the added versatility of digital output. Like the ProMPA-II, each input circuit has 48v phantom power and features variable input impedance which can radically vary the overall performance of any high quality dynamic or ribbon microphone. The Digital MPA-II can be configured for dual mono or stereo operation with selectable mid/side mic support, summing the adjacent channel, to decode left/right signals.
Key features:
- Variable input impedance for flexible microphone voicing (150 Ohms To 2400 Ohms)
- Selectable plate voltage
- Large VU meters
- Backlit function switches
- Discrete Class-A input microphone preamplifier
- Low noise at lower gain settings
- Low total harmonic distortion
- Wide frequency response
- Front-mounted instrument input jack
- Supports mid/side miking technique
- Operates at +4dbm/-10dbv output
- Selectable stereo/dual-mono operation of output controls
- Automatic instrument input selection
- 24-204KHz External sample rate
- 44.1K, 48K, 88.2K, 96K, 176.4K, 192K Internal sample rates
- 24/16 bit switchable dithering
- Wide dynamic range A/D
- Rotary encoder for quick selection of sample rate
- Separate analog & digital output level controls
- Digital Level LED meters display both Average & Peak level
- ADAT optical I/O
- Sync to incoming ADAT data rate
- Switch selectable optical output (S/PDIF or ADAT)
- AES/EBU & S/PDIF outputs
- Two word clock jacks allowing loop through
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The ART Digital MPA-II delivers all of the same great features of the ProMPA with the added versatility of digital output. Like the ProMPA-II, each input circuit has 48v phantom power and features variable input impedance which can radically vary the overall performance of any high quality dynamic or ribbon microphone. The Digital MPA-II can be configured for dual mono or stereo operation with selectable mid/side mic support, summing the adjacent channel, to decode left/right signals.
Key features:
- Variable input impedance for flexible microphone voicing (150 Ohms To 2400 Ohms)
- Selectable plate voltage
- Large VU meters
- Backlit function switches
- Discrete Class-A input microphone preamplifier
- Low noise at lower gain settings
- Low total harmonic distortion
- Wide frequency response
- Front-mounted instrument input jack
- Supports mid/side miking technique
- Operates at +4dbm/-10dbv output
- Selectable stereo/dual-mono operation of output controls
- Automatic instrument input selection
- 24-204KHz External sample rate
- 44.1K, 48K, 88.2K, 96K, 176.4K, 192K Internal sample rates
- 24/16 bit switchable dithering
- Wide dynamic range A/D
- Rotary encoder for quick selection of sample rate
- Separate analog & digital output level controls
- Digital Level LED meters display both Average & Peak level
- ADAT optical I/O
- Sync to incoming ADAT data rate
- Switch selectable optical output (S/PDIF or ADAT)
- AES/EBU & S/PDIF outputs
- Two word clock jacks allowing loop through
